Sparmax Airbrush Compressor 23-28LPM - TC-610H Plus

by Sparmax
Sold out
€453.99
SKU 438836

The Sparmax TC-610H Plus is an updated version of the popular TC-610H compressor, featuring a stylish case design with top mounted pressure regulator, pressure gauge & detachable twin airbrush holders.

The TC-610H Plus compressor provides a powerful airflow (23-28 lpm), which can meet the needs of airbrush enthusiasts and professionals alike. It features a 2.5L air tank system which helps to provide a consistent airflow with minimal pulsations. It has ample power for any airbrushing task and is suitable for professional airbrush users doing general or extended airbrush applications.

Being automatic, when the TC-610H's air tank pressure falls below 40psi, the compressor runs to recharge the tank back to 60psi and then switches off - the compressor runs to the demand of the air tank, rather than switching on/off every time the airbrush trigger is pressed.

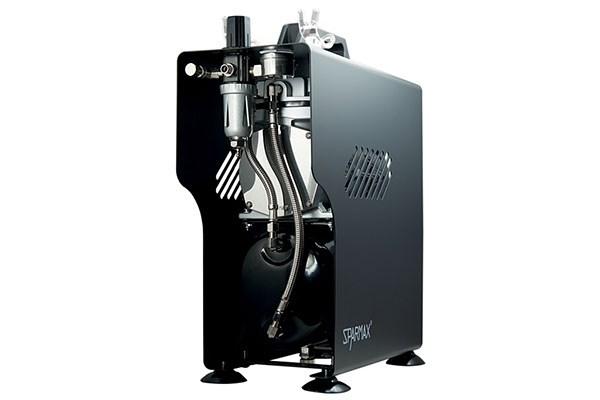

The TC-610H Plus is enclosed in a sturdy steel case with carrying handle, making storing and transporting more convenient, allowing you to personalize its surface in any way you want.

The TC-610H Plus is fitted with an adjustable pressure regulator / moisture filter and pressure gauge set. The pressure regulator has 2 x 1/8 BSP outlets (1 x blanking cover included) & is supplied with a 3M braided 1/8 BSP hose.

Supplied with hose adapters for Aztek, Badger & Paasche airbrushes

The Sparmax TC-610H Plus compressor features:

-Zero maintenance, oil-less air compressor
-Single cylinder
-2.5 Litre storage tank with drain valve
-Working pressure from 0 psi to 60 psi (4.1bar)
-Auto on/off switch: 2.8/4.1 bar (40/60psi)
-Air flow: 23 - 28 lpm (0.81 - 0.98 cfm) at open flow
-1/6 HP (135 Watt) Motor
-2 x 1/8 BSP outlet on compressor

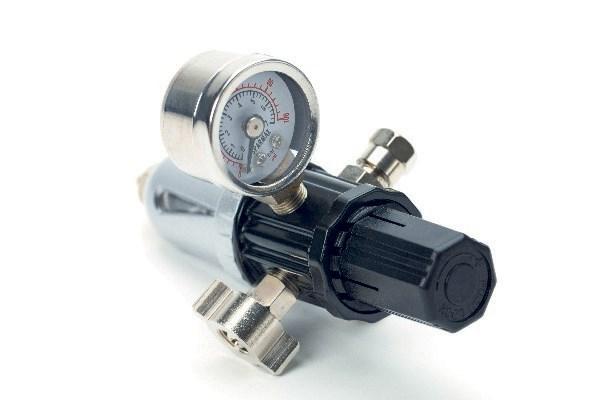

-Detachable pressure regulator, moisture filter & gauge set

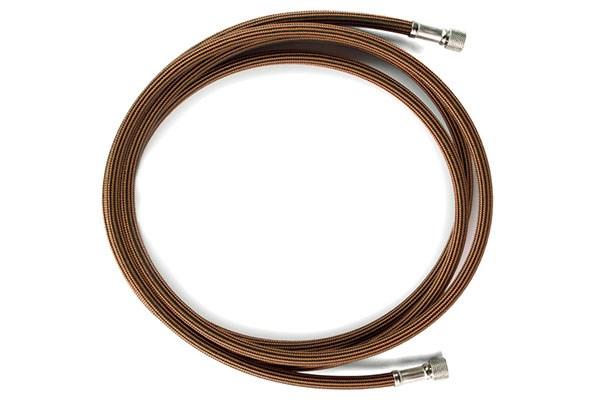

-1 x 3M Braided hose (1/8 BSP)
-Strong protective metal case with handle
-2 x Detachable airbrush holders
-Adapters for Aztek, Badger & Paasche airbrushes
-Noise level: 53 decibels
-Size: L32 x W16 x H37 cm (12.6" x 6.3" x 14.5")
-Weight: 7.3 kgs (16 lbs)
-Voltage: 220-240V 50Hz
-Time to charge 30 Sec. (no load)
-Time to recharge 10 Sec. (no load)
-Duty cycle: 60 minutes continuous use. Please allow the motor to rest for at least 20 minutes after each cycle of continuous use.
